How does 🙈 or 💩 affect our S�curity?

A bughunter and offensive perspective on Ⓔⓝⓒⓞⓓⓘⓝⓖ ⓕⓤⓒⓚ ⓤⓟⓢ

Created by Christopher Bleckmann-Dreher / @schniggie
http://bsides.合.xyz

Agenda

1. WhoAmI
2. ASCII and ISO-8859
3. Unicode
4. Unicode encodings
5. Security implications 101
6. Real world examples
7. Summary + QA

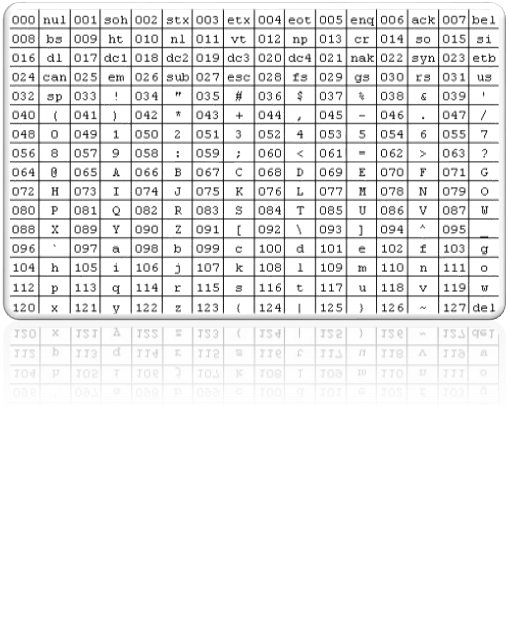

ASCII

• American Standard Code for Information Interchange
• Established in 1963
• 7-Bit character set
• Only 128 characters
• 0000000 – 1111111
• A: (65)₁₀ = (41)₁₆ = (1000001)₂
• a: (97)₁₀ = (61)₁₆ = (1100001)₂

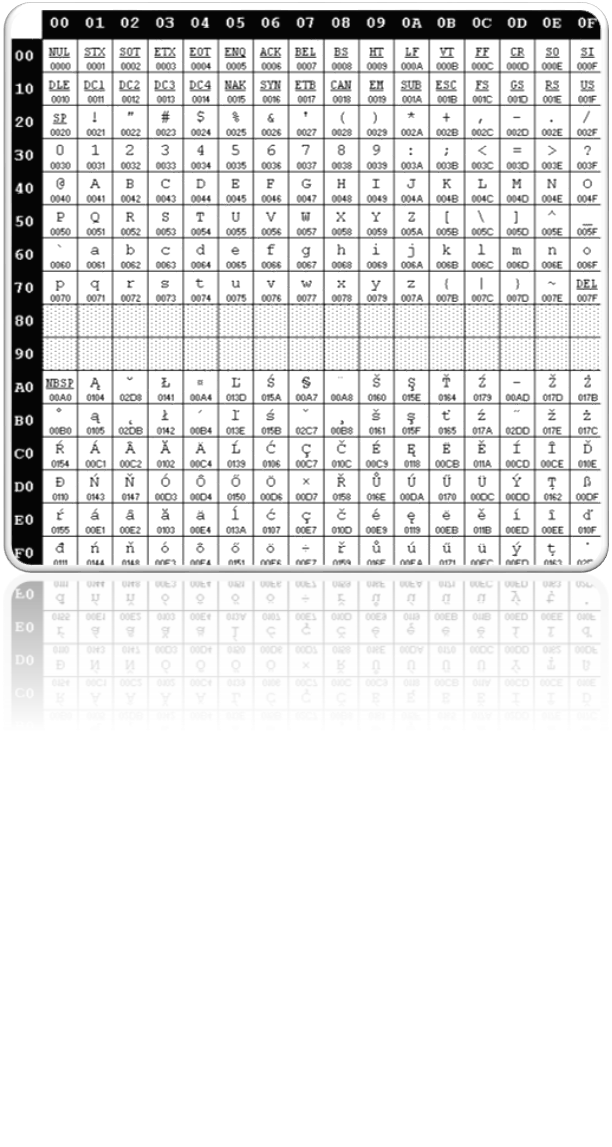

ISO-8859-?

• ASCII compatible 👍
• 8-Bit character set
• 256 characters
• 00000000 – 11111111
• 8859-2: (Central Europe)

Unicode

• Since 1991
• MultiByte character set
• Fully ASCII and ISO-8859 compatible 👍
• Different encodings (UTF-8, UTF-16, UTF-32, EBCDIC, …)

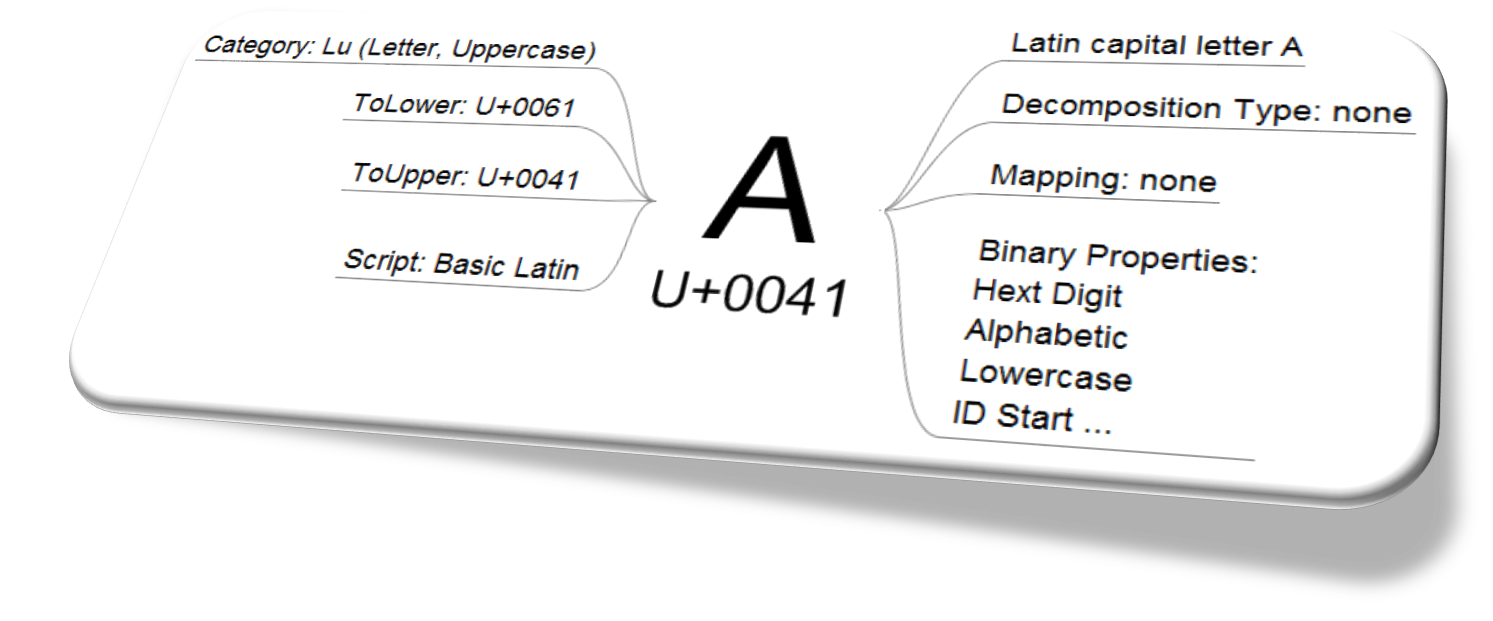

Unicode

• U+0000 – U+10FFFF


• U+0000 – U+007F: ASCII
• U+0080 – U+00FF: ISO


• U+0000 – U+FFFF (BMP: Basic Multilingual Plane) = 65536 characters
• U+010000 – U+10FFFF (Astral Planes) = Over a million

Unicode Encodings

Security Implications - Length of UTF8 String

						size_t length = measure(str1) + measure(str2) + 1;
						char *concat = malloc(sizeof(char) * length);
						if(concat == NULL) { // error }

						snprintf(concat, length, "%s%s", str1, str2);

						int measure(char *string) {
								// allocate enough memory to hold the wide string
								size_t needed = mbstowcs(NULL, string, 0) + 1;
								wchar_t *wcstring = malloc(needed * sizeof *wcstring);
								if (!wcstring) return -1;

								// change encodings
								if (mbstowcs(wcstring, string, needed) == (size_t)-1) return -2;

								// measure width
								int width = wcswidth(wcstring, needed);

								free(wcstring);
								return width;
						}

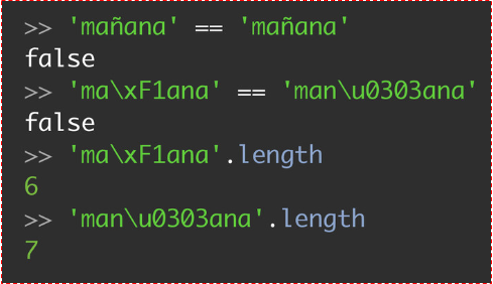

Security Implications - JavaScript Compare

Security Implications - JavaScript Compare

Security Implications - JavaScript Compare

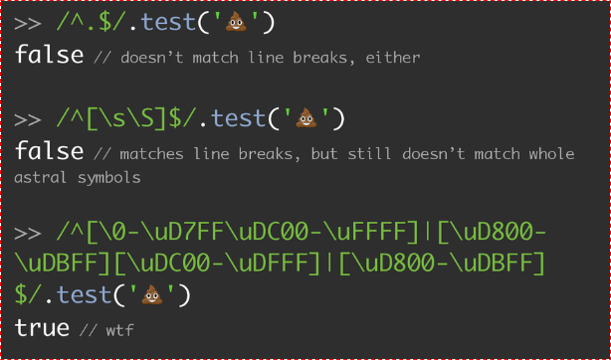

Security Implications - JavaScript RegEx

Security Implications - JavaScript RegEx

Security Implications - JavaScript RegEx

• Test it yourself http://scriptular.com

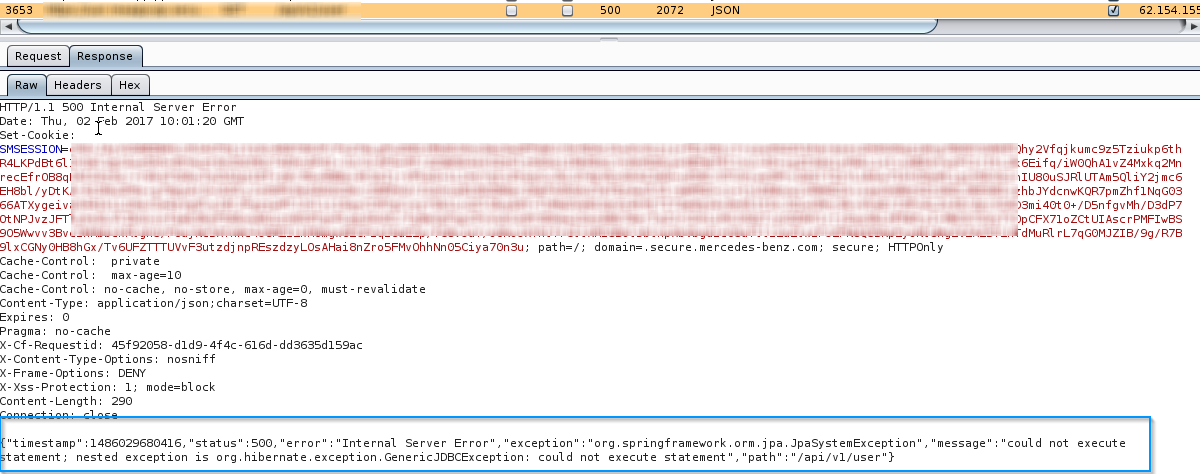

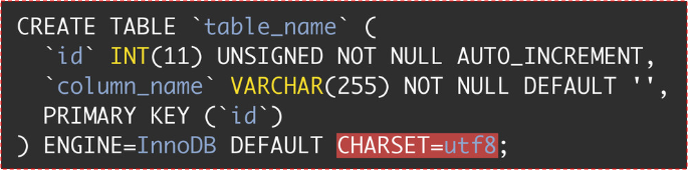

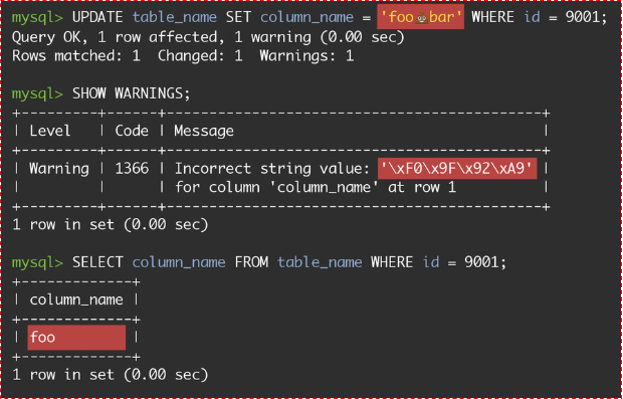

Security Implications - MySQL vs. UTF-8

Security Implications - MySQL vs. UTF-8

Security Implications - MySQL vs. UTF-8

Security Implications - MySQL vs. UTF-8

Abusing Unicode to attack a victim

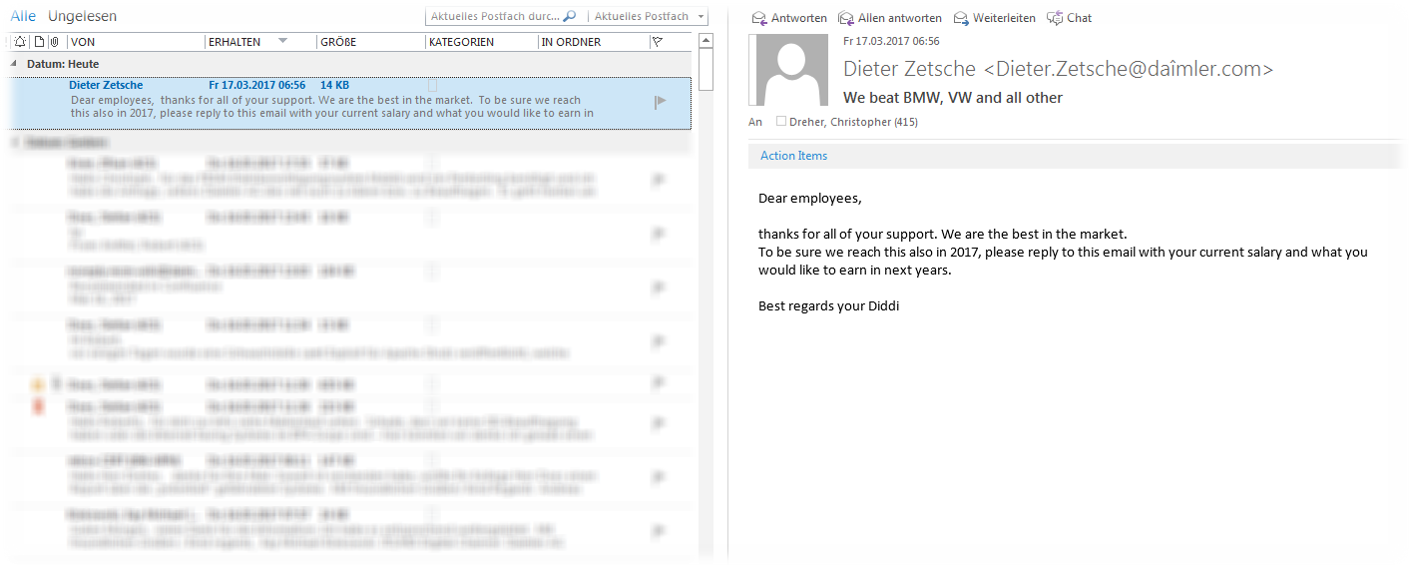

Anything suspicious?

Anything suspicious?

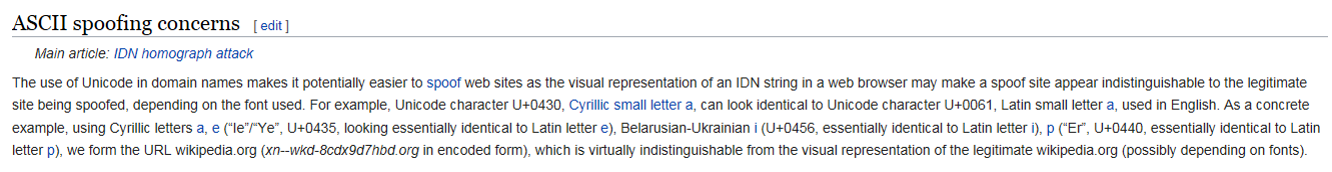

IDN Domains

• Allowed since end of 2009

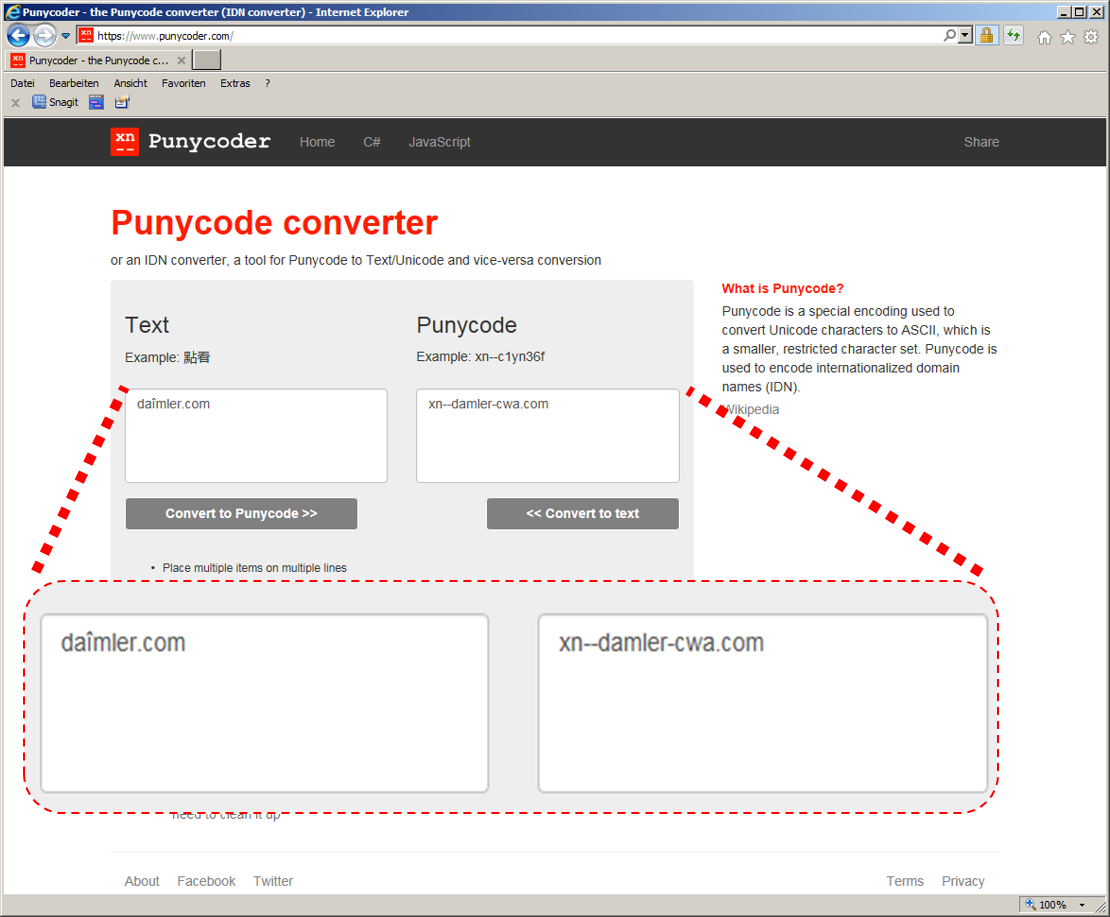

• Stored as ASCII strings using Punycode transcription
• No changes to the DNS system needed

Source: https://en.wikipedia.org/wiki/Internationalized_domain_name

IDN Domains

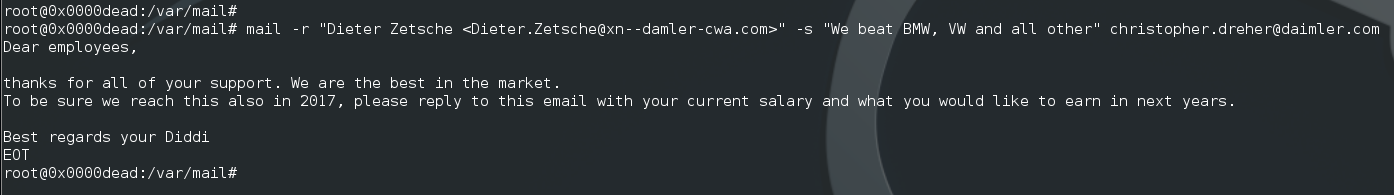

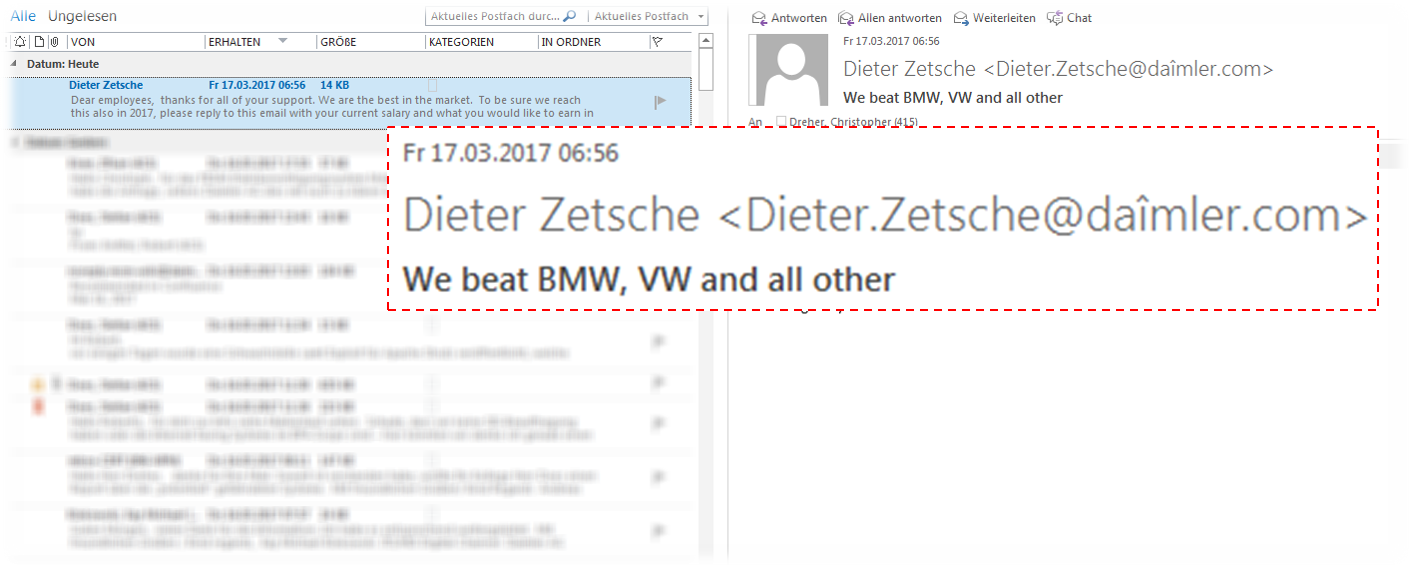

IDN Domains and Mailing

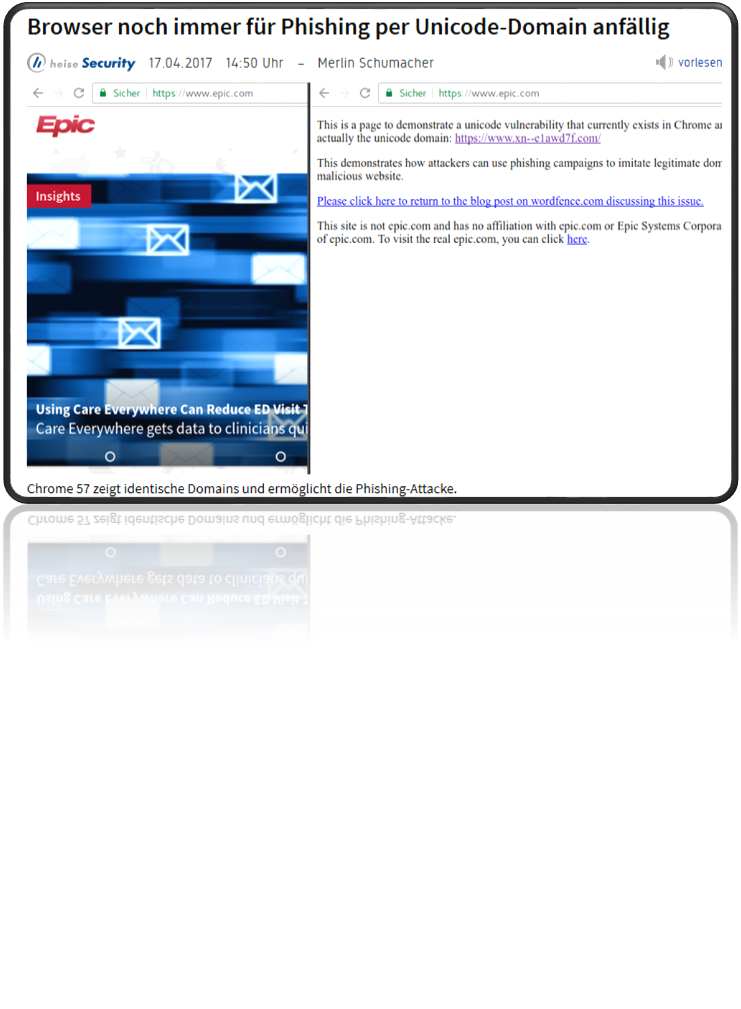

IDN Domains – Real world attack scenario

Source: https://www.heise.de/newsticker/meldung/Browser-noch-immer-fuer-Phishing-per-Unicode-Domain-anfaellig-3686474.html

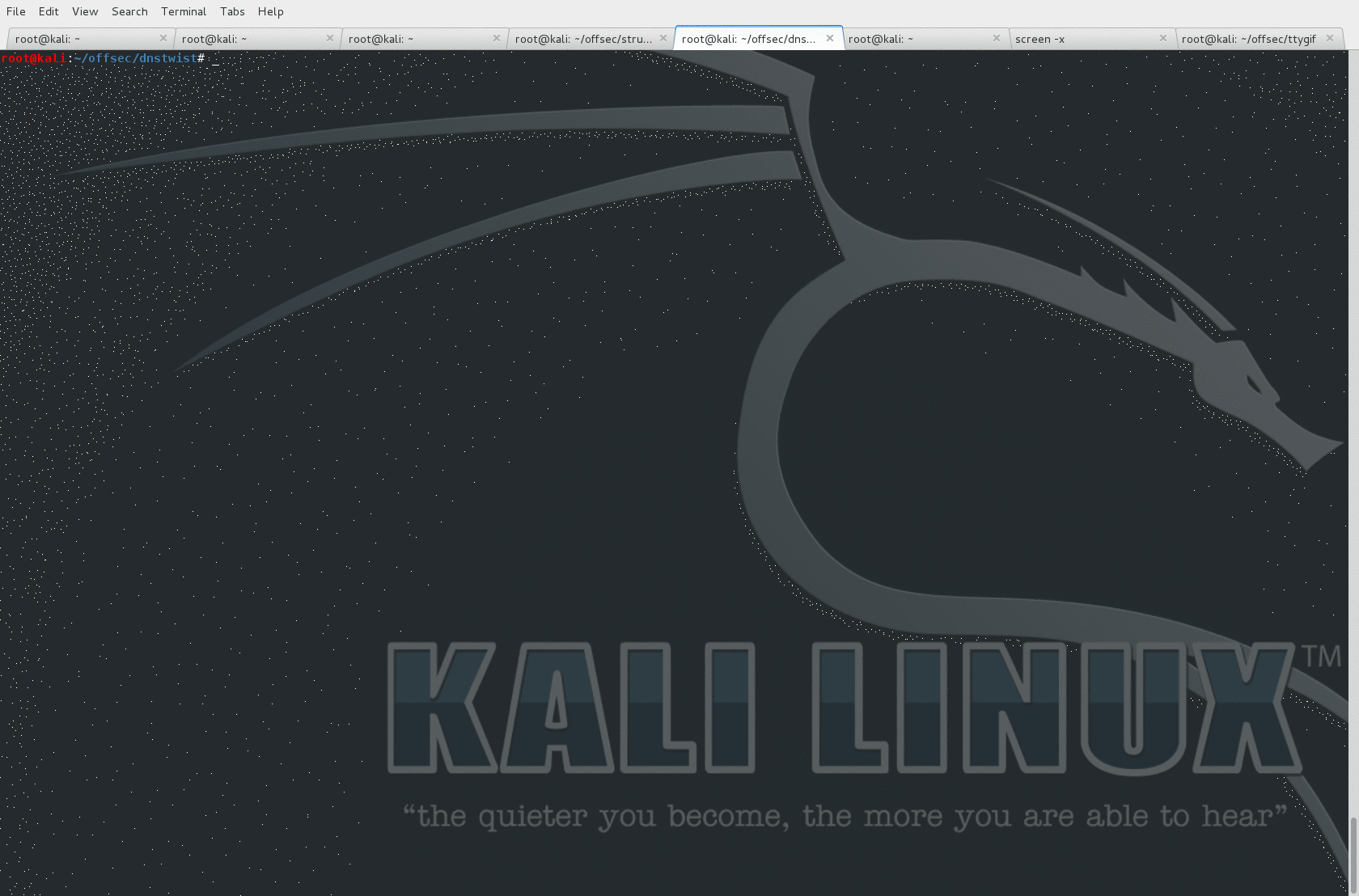

IDN Domains – Find good ones

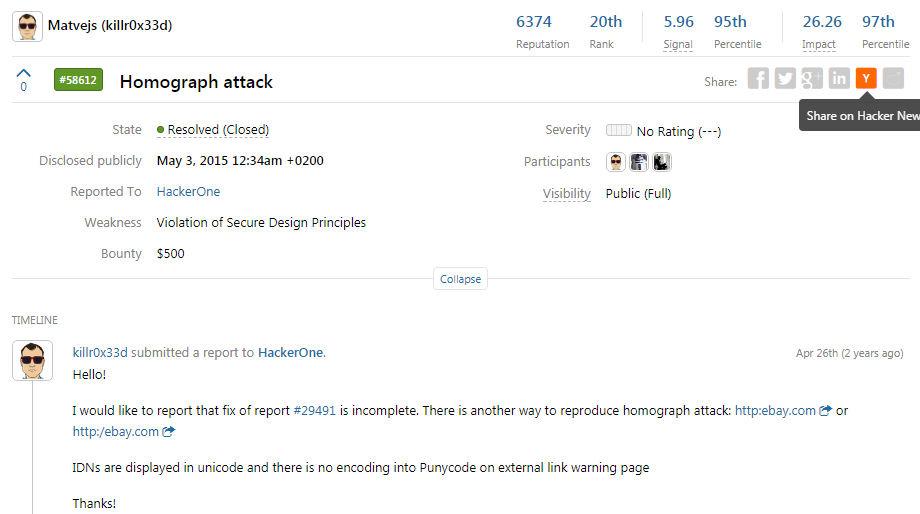

IDN $$$

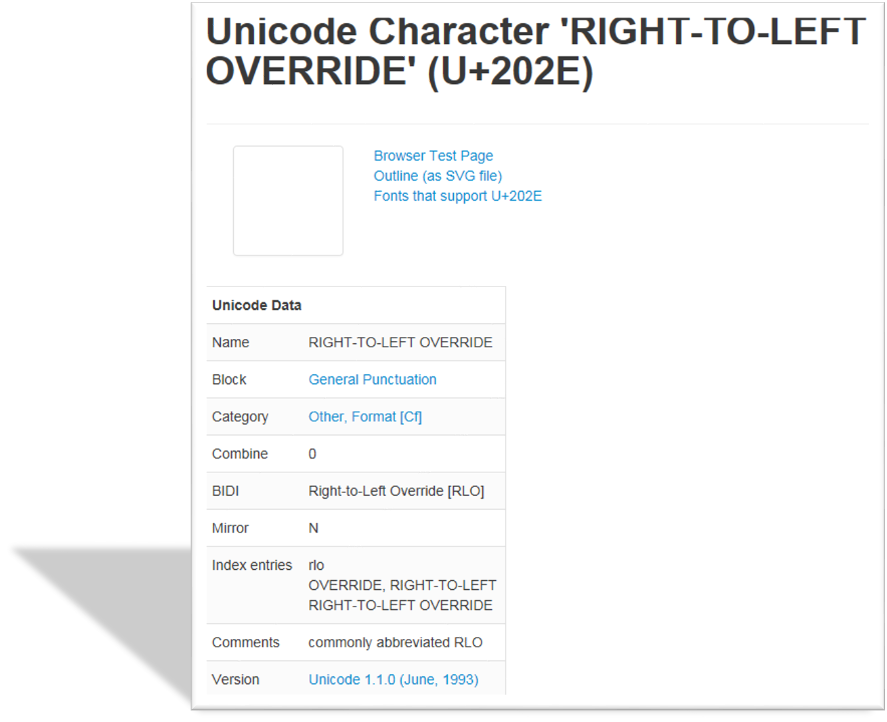

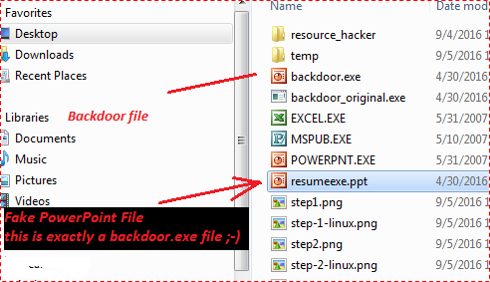

Left or right?

Left or right?

ruby -e 'File.rename("backdoor_ppt.exe", "resume\xe2\x80\xaetpp.exe")'

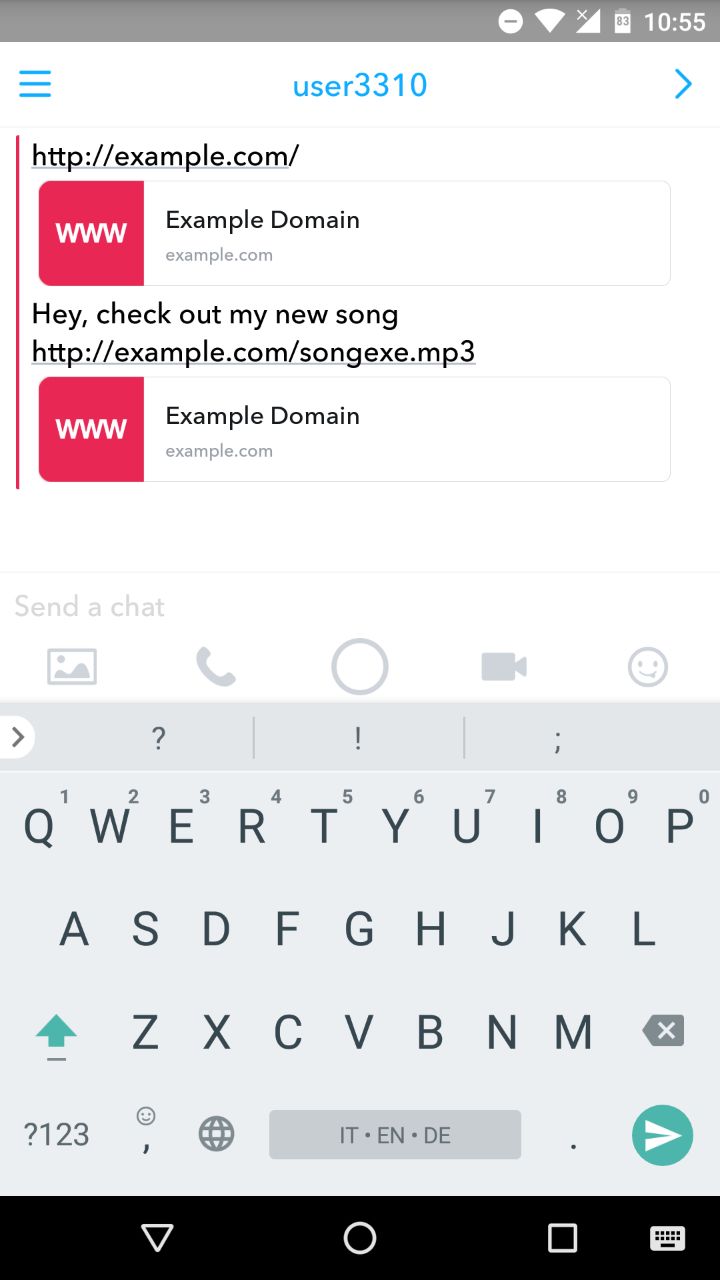

RTLO Snapchat

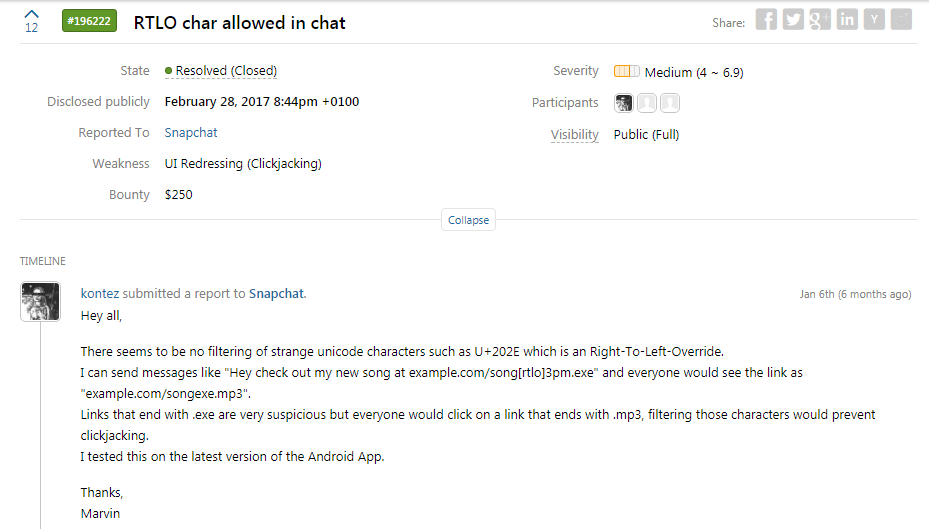

RTLO $250

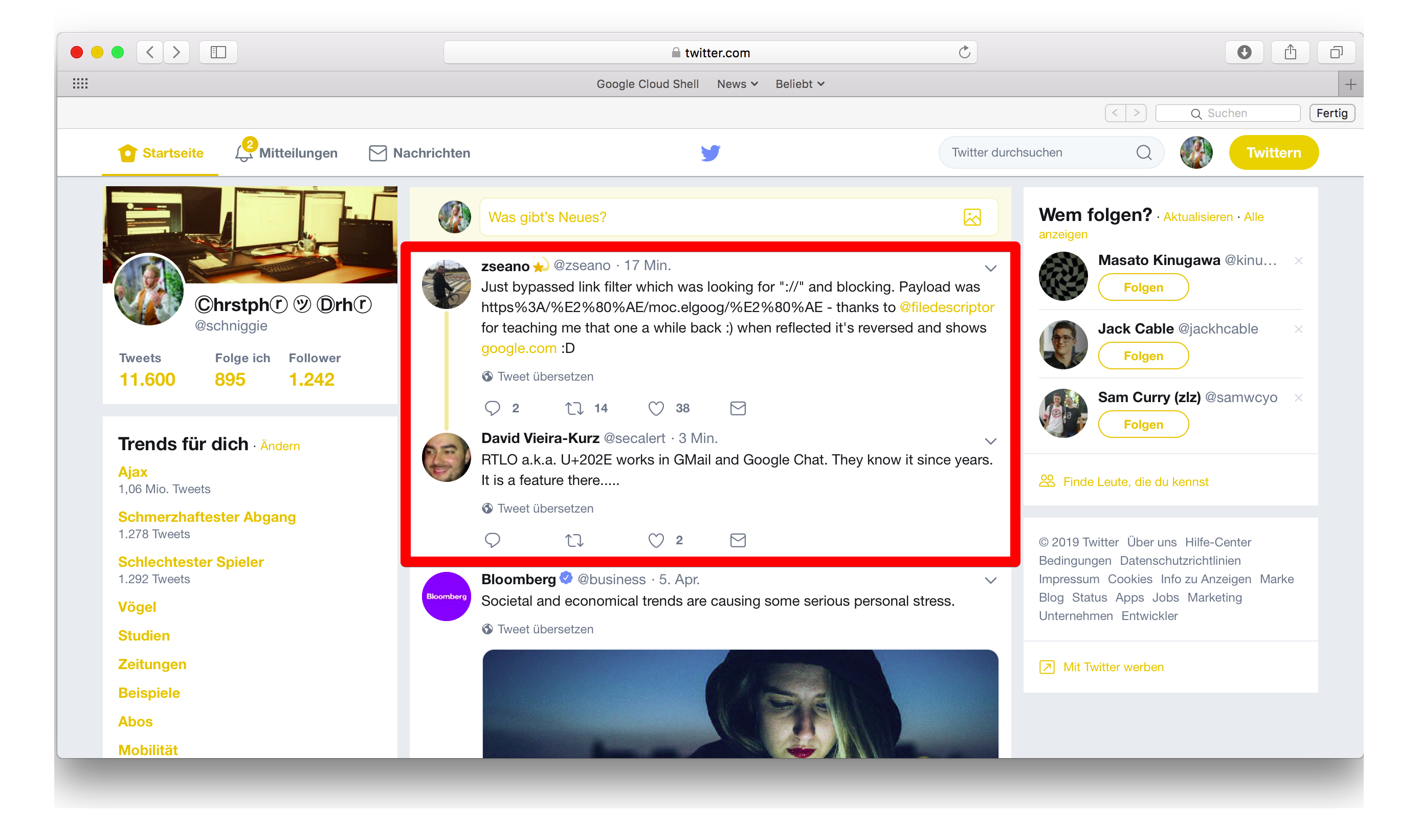

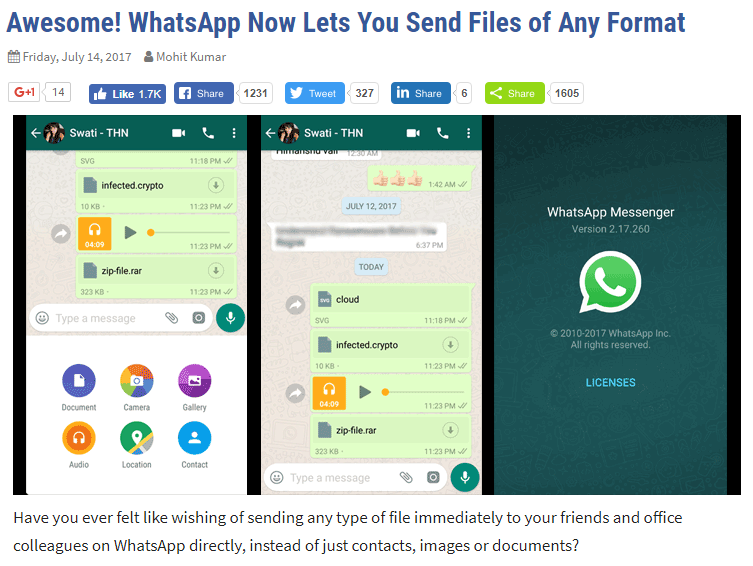

RTLO Go Go Go and hunt ... (from 2017)

2019 and still sth. to care about?

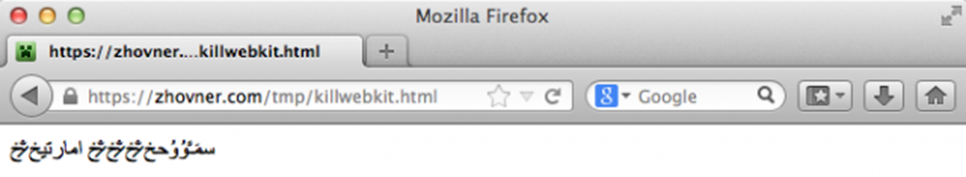

Crashing every iOS and OS X device

• In 2013 every iOS and OS X device was vulnerable to

Source: https://arstechnica.com/apple/2013/08/rendering-bug-crashes-os-x-and-ios-apps-with-string-of-arabic-characters

• For example Browser, Messages (SMS, iMessage, Whatsapp, …), Wireless Hotspots

Crashing every iOS and OS X device

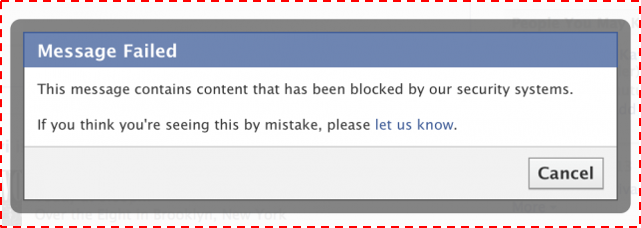

• Even Facebook implemented filter withtin Messenger

Frontend 💔 Backend

Frontend 💔 Backend

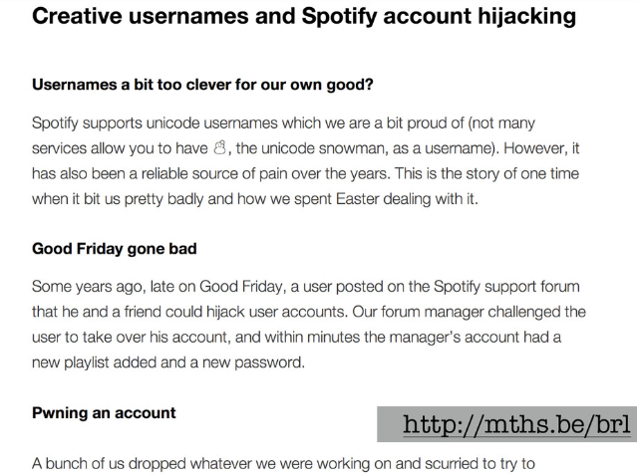

Spotify account hijacking

Spotify account hijacking

1. User: ᴮᴵᴳᴮᴵᴿᴰ triggers forgot password

1. Forgot password:
>>> canonical_username(u'\u1d2e\u1d35\u1d33\u1d2e\u1d35\u1d3f\u1d30')
u'BIGBIRD'

2. Click on password reset Link in Mail:
>>> canonical_username(canonical_username(u'\u1d2e\u1d35\u1d33\u1d2e\u1d35\u1d3f\u1d30'))
u'bigbird'

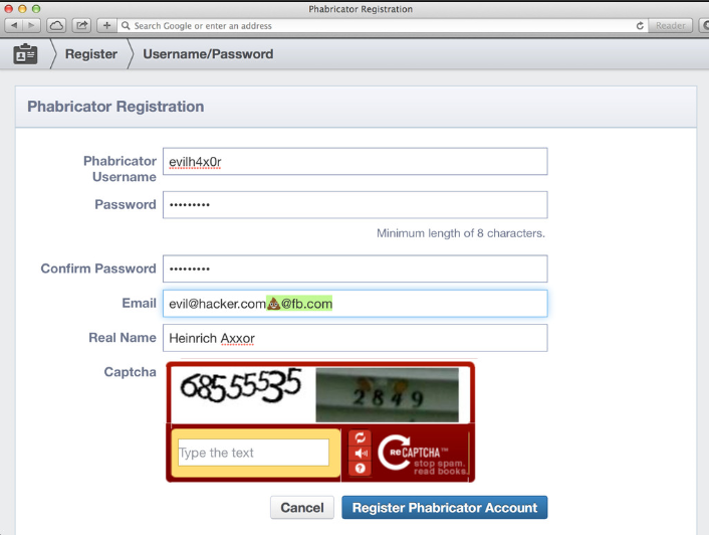

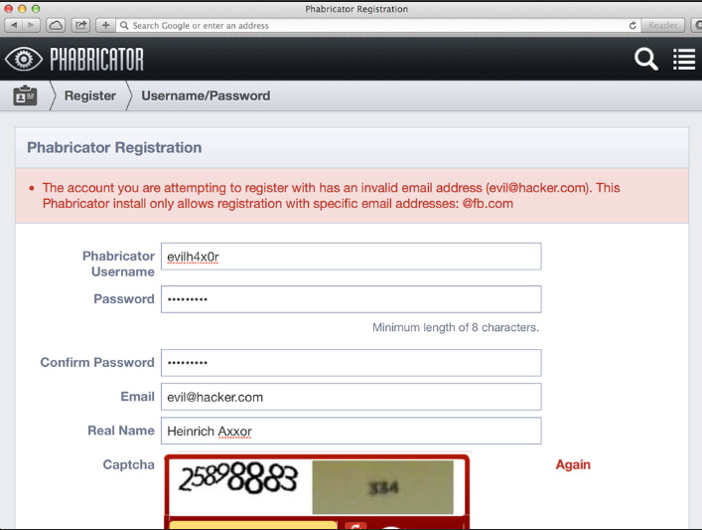

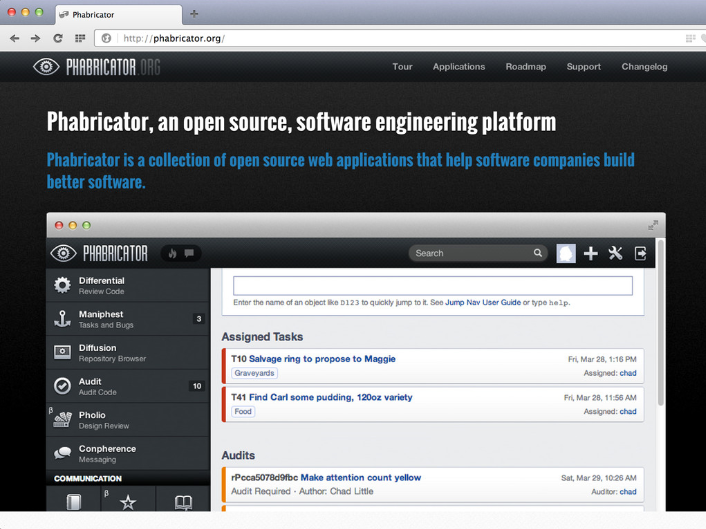

Phabricator Bypass

Phabricator Bypass

Phabricator Bypass

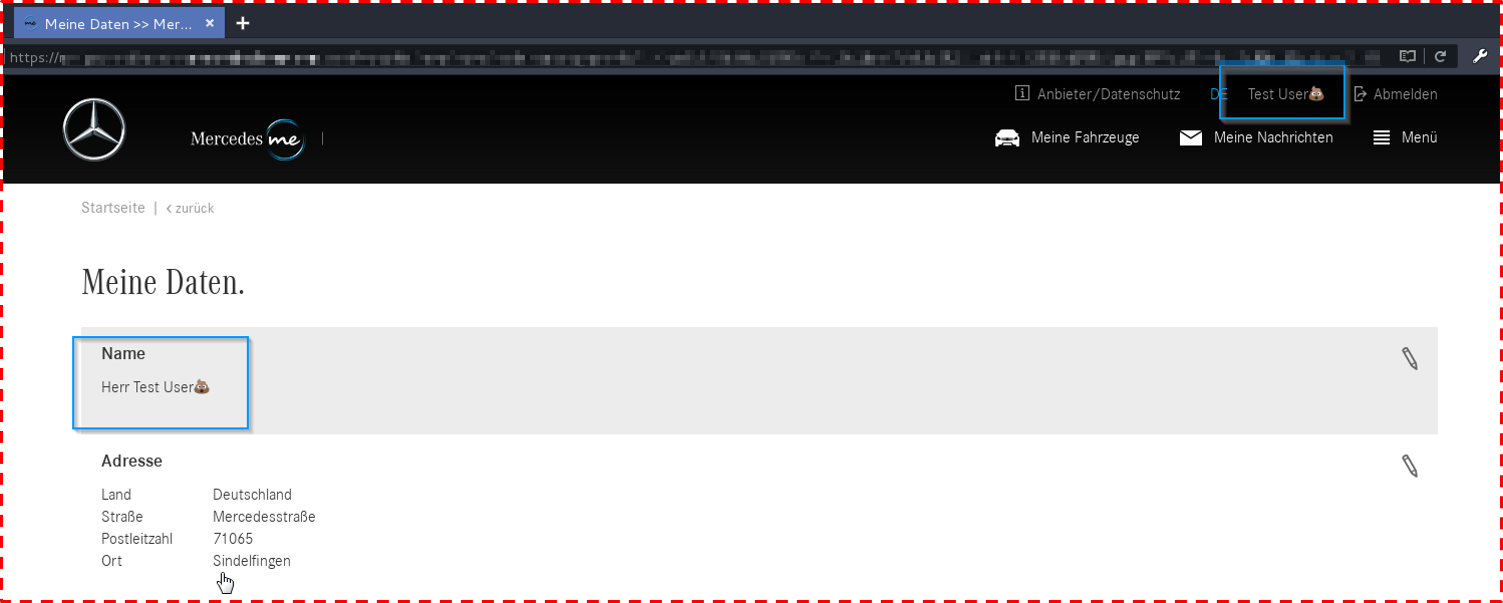

PILE OF POO

Summary

For developer:

• Verify that methods, functions, frameworks can handle Unicode
• Input validation should also handle Unicode characters
• Verify that all system and interconnection can handle Unicode

• Go and inject 💩
• Automate it / Implement it in tools

Thanks for your time :)
